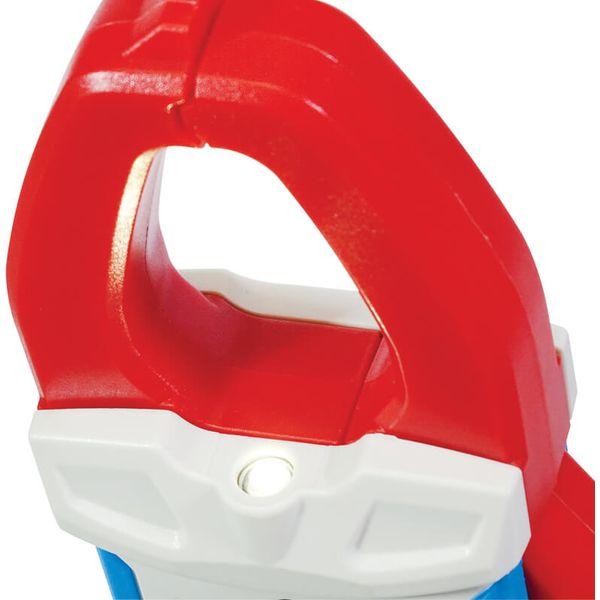

4000 count backlit LCD display 30mm Cable Clamp size Measurement of DC voltage and AC voltage up to 1000V Capacitance to 100mF Temperature measurement from -20°C to 1000°C INRUSH Current Measurements VFD – Variable Frequency Drive voltage value NCV – Non-Contact Voltage Detector Built-In Flashlight Continuity buzzer and Diode Test Peak Mode and Data Hold function Auto Power Off

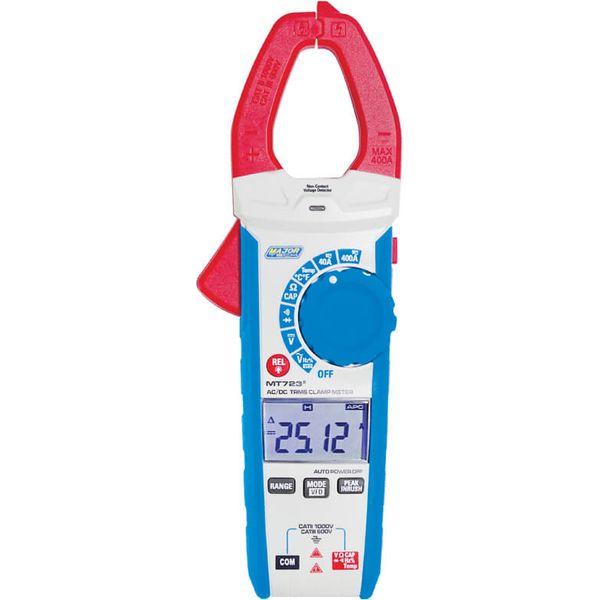

DESCRIPTION: The MT723 is a 400A AC/DC True RMS Clamp Meter with indication on a large backlit LCD display; providing fast sampling time with high accuracy. The meter measures 1000V AC/DC; temperature; frequency; capacitance and resistance measurements; plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV; ACV and ACA offset adjustment; Non-Contact voltage detection; data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.
Accessories: Test Leads Type-K Wire Probe Type-K Adaptor Carrying Case 3 x AAA Batteries Instruction Manual
